400 KVA XQ350 Diesel Generator Set
350 kW
MINIMUM RATING
320 kW
EMISSIONS/FUEL STRATEGY
EPA and CARB Tier 4 Interim technology
DOWNLOADS: | Spec-Sheet-CAT-XQ350 |
OVERVIEW
320-350 KW Portable Generator Set
The XQ350 portable generator set provides reliable power from 320-350 kW at 60 Hz. The highly corrosion-resistant construction offers longer life to reduce cost ownership and operation. This portable generator set utilizes EPA and CARB Tier 4 Interim technology for non-road mobile applications to meet emissions standards.
FEATURES AT A GLANCE
Fully featured power metering and relaying with engine control and monitoring |
Designed for security and safety with viewing window and lockable access door |
Precise control, excellent block load, and constant voltage within normal operating range |
Consistent performance and excellent fuel economy at minimal weight |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
Minimum Rating | 320 kW |
Maximum Rating | 350 kW |
Frequency | 50 – 60 Hz |
Speed | 1500-1800 rpm |
Voltages | 277 to 480 Volts, 139 to 240 Volts, 120 to 208 Volts, 230 to 400 Volts |
Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
Engine Model | C13 ATAAC |
Bore | 5.10 in |
Stroke | 6.20 in |
Displacement | 763 in³ |
Compression Ratio | 17.0:1 |
Aspiration | TA |
Governor type | ADEM A4 |
Fuel System | MEUIC |
DIMENSIONS
Length – Maximum | 283 in |
Width – Maximum | 102 in |
Height – Maximum | 126 in |

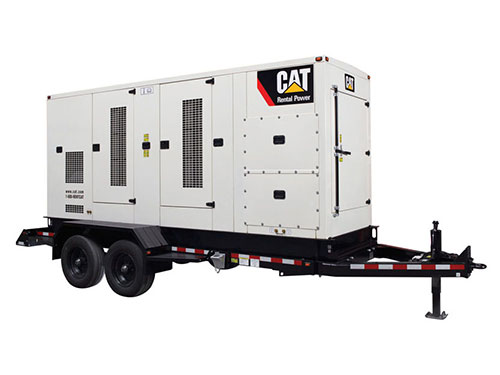

CAT XQ350 Diesel Generator
To get more information on the CAT XQ350 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
