140 ~ 150 KW Natural Gas Generator Set
MAXIMUM RATING
150 eKW
MINIMUM RATING
140 eKW
150 eKW
MINIMUM RATING
140 eKW
| DOWNLOADS: |  Spec-Sheet-CAT-DG150-2 |
OVERVIEW
Offering reliable power from 140-150 kW at 60 Hz, the DG150-2 natural gas generator set measures up to your power needs. The EMCP 4 interface couples advanced management and diagnostic tools in a user-friendly interface. Certified for EPA stationary emergency use, this generator set complies with local emission standards required for permits.
FEATURES AT A GLANCE
| Up to 452 SKVA at a 30% voltage dip |
| Able to start large motors in a power outage |
| Runs on natural gas and LP vapor |
| Excellent fuel economy in the four-stroke-cycle gas engine |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Voltage | 480 Volts |
| Frequency | 60 Hz |
| Natural Gas/LPG Rating | 140 ~ 150 ekW |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Speed | 1800 rpm |
| Natural Gas Rating | 140 ~ 150 ekW |
ENGINE SPECIFICATIONS
| Engine Model | 8.8L V8, 4-cycle Gas |
| Fuel System | Natural Gas, LP Vapor |
| Displacement | 535 in³ |
| Aspiration | Turbocharged Air-to-Air Aftercooler |
| Governor Type | Electronic |
| Compression Ratio | 10:1:1 |
| Bore | 4.35 in |
| Stroke | 4.5 in |
DIMENSIONS
| Length | 119.6 in |
| Width | 43.7 in |
| Height | 65.2 in |
| Weight | 3563 lb |

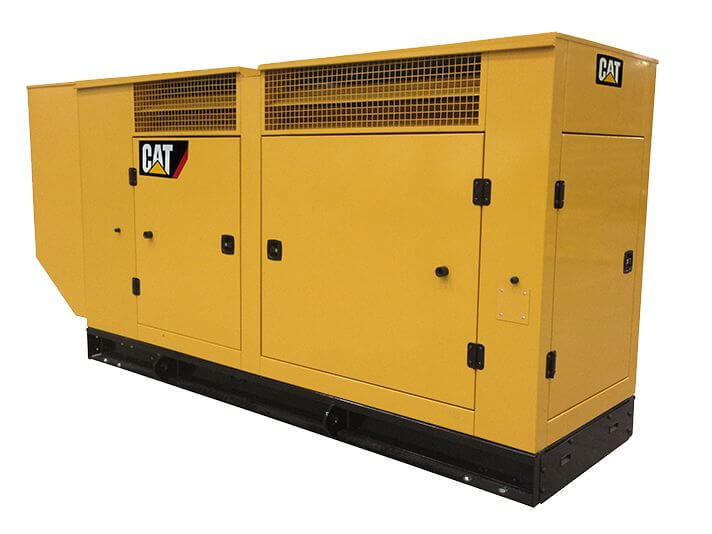

CAT DG150-2 Natural Gas Generator
