1415 – 2022 KW Natural Gas Generator Set
MAXIMUM RATING
2022 KW
MINIMUM RATING
1415 KW
2022 KW
MINIMUM RATING
1415 KW
| DOWNLOADS: |  Spec-Sheet-CAT-G3520E |
OVERVIEW
Offering reliable power from 1415 kW to 2022 kW at 60 Hz, the Cat G3520E natural gas generator set is your power solution. This natural gas generator set boasts proven reliability across thousands of applications. With a robust, efficient design, this generator set prolongs lifespan to improve your operational costs.
FEATURES AT A GLANCE
| Reduced emissions and improved engine efficiency |
| User-friendly control panel to monitor all operations |
| Maximizes performance on low-pressure pipelines |
| Industry-leading mechanical design |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Gas Standby Rating | 2022 eKW |
| Fuel Type | Natural Gas |
| Maximum Electrical Efficiency | 41.5 % |
| Maximum Standby Rating | 2022 |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
ENGINE SPECIFICATIONS
| Engine Model | G3520E |
| Aspiration | TA |
| Fuel System | Natural Gas |
| Displacement | 5248 in³ |
| Compression Ratio | 11.9 |
| Bore | 6.7 in |
| Stroke | 7.5 in |
DIMENSIONS
| Length | 271 in |
| Width | 79 in |
| Height | 107 in |
| Weight | 39306 lb |

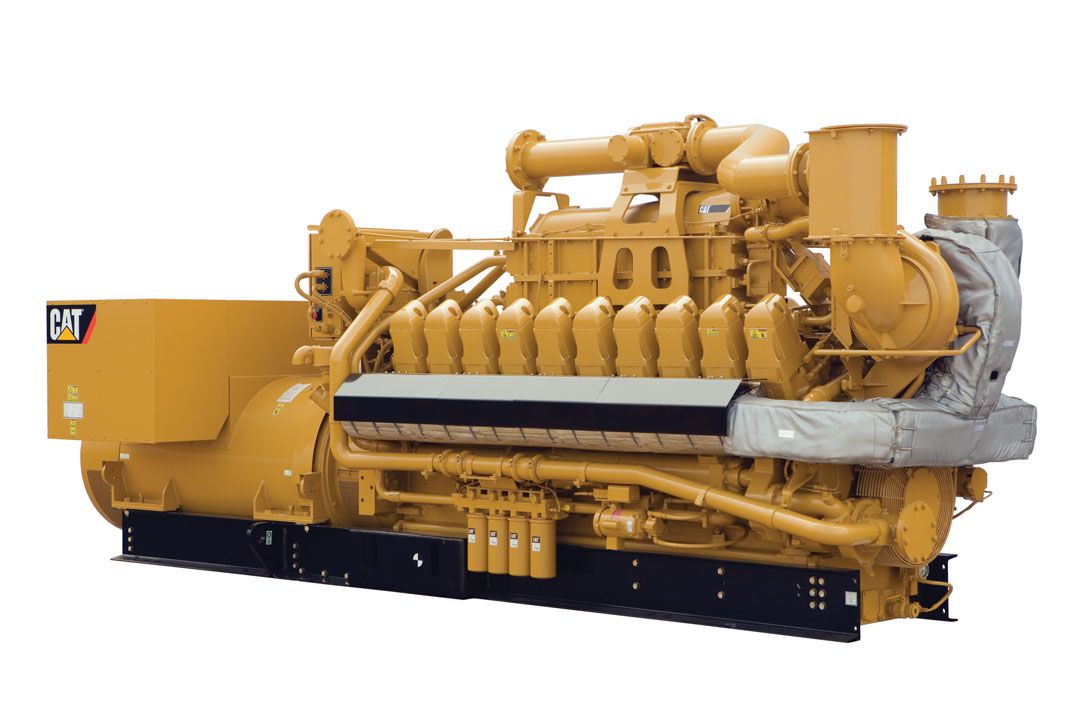

CAT G3520E Natural Gas Generator
To get more information on the CAT G3520E Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
