1250 KVA 3508C Diesel Generator Set
MAXIMUM RATING
1000 ekW
MINIMUM RATING
1000 ekW
EMISSIONS/FUEL STRATEGY
Low emissions
1000 ekW
MINIMUM RATING
1000 ekW
EMISSIONS/FUEL STRATEGY
Low emissions
| DOWNLOADS: |
OVERVIEW
Producing reliable power from 1000 ekW at 60 Hz, our 3508C diesel generator sets designed to ISO 8528-5 transient response requirements. All 3508C generator sets are Low emissions compliant.
FEATURES AT A GLANCE
| Reliability through a durable design built to withstand rough handling in harsh environments |
| Superior motor starting capability that minimizes the need for oversizing your alternator |
| Proven capability in-field in thousands of applications across the globe |
| Four-stroke-cycle engine combines consistency in performance with fuel economy |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 1000 ekW |
| Maximum Rating | 1250 ekW |
| Emissions/Fuel Strategy | Low emissions |
| Voltage | 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
ENGINE SPECIFICATIONS
| Engine Model | Cat® 3508C |
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 2107.15 in³ |
| Compression Ratio | 14.0:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | ADEM™ III |
DIMENSIONS
| Length – Maximum | 191.4 in |
| Width – Maximum | 91.25 in |
| Height – Maximum | 100.2 in |

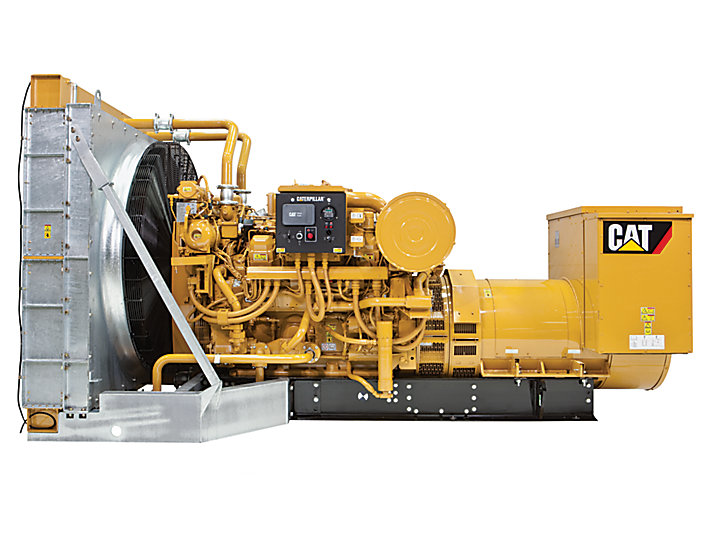

CAT 3508C Diesel Generator
To get more information on the CAT 3508C Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
