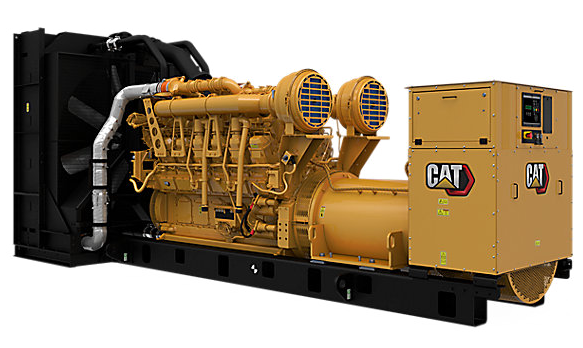

1230 – 1500 ekW 3512C Diesel Generator Set
1230 ekW
MINIMUM RATING
1500 ekW
EMISSIONS/FUEL STRATEGY
U.S. EPA Certified
| DOWNLOADS: |  Spec-Sheet-CAT-3512C |
OVERVIEW
Built to meet a broad spectrum of needs, the 3512C diesel generator set provides reliable power for mission-critical, standby, prime, and continuous applications.
This diesel generator set offers a reliable source of power, producing 1230-1500 ekW at 60 Hz.
Built to accept 100% block load in one step, this set meets ISO 8528-5 steady-state and transient response requirements.
Additionally, these diesel generator sets are U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards).
FEATURES AT A GLANCE
| BMEP 19% lower than other brands, providing a great block load capability |
| Built to last with a rugged, durable design that withstands rough treatment |
| Proven reliability for in-field operation across thousands of applications |
| The four-stroke-cycle engine combines consistency in performance with fuel economy |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 1230 ekW |
| Maximum Rating | 1500 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Voltage | 380 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
ENGINE SPECIFICATIONS
| Engine Model | 3512C ATAAC, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 3161.03 in³ |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™3 |
DIMENSIONS
| Length – Maximum | 248.6 in |
| Width – Maximum | 89.8 in |
| Height – Maximum | 110 in |
| Dry Weight – Genset (maximum) | 30790 lb |
CAT 3512C Diesel Generator
To get more information on the CAT 3512C Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
