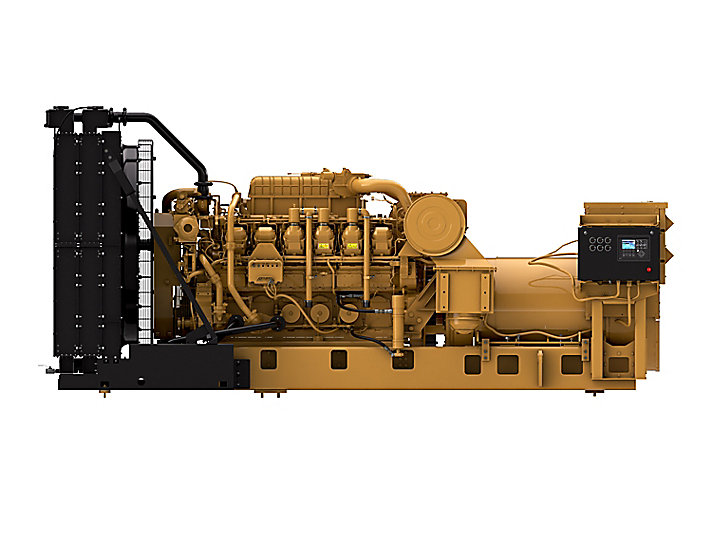

1320 eKW 3516B Land Electric Diesel Generator Set
1320 ekW
MINIMUM RATING
1320 ekW
EMISSION/FUEL STRATEGY
Non-certified/EUI
| DOWNLOADS: |  Spec-Sheet-CAT-3516B-Land-Electric |
OVERVIEW
1320 EKW Diesel Generator Set
Providing reliable power at 1320 ekW at 60 Hz, the 3516B Land Electric-Drive is built for the specialized power generation requirements of oil and gas drilling. This diesel generator set is specifically designed for drilling operations utilizing electric AC rigs. Combing field experience with modern electronics, the 3516B power modules ensures improved performance and reduced emissions with a simplified interface. This module is not emissions certified and available to non-regulated areas.
FEATURES AT A GLANCE
| Designed to meet the needs of petroleum applications |
| Proven reliability in a broad spectrum of field applications |
| Full-load tested to ensure performance |
| Rugged design offers durability in harsh environments |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 1320 ekW |
| Maximum Rating | 1320 ekW |
| Emissions/Fuel Strategy | Non-certified/EUI |
| Voltage | 600 Volts |
ENGINE SPECIFICATIONS
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 4210 in³ |
| Aspiration | Turbocharged-Aftercooled |
DIMENSIONS
| Width – Maximum | 93.9 in |
| Length – Maximum | 310 in |
| Height – Maximum | 99.2 in |
| Dry Weight | 41469 lb |
CAT 3516B Land Electric Diesel Generator
To get more information on the CAT 3516B Land Electric Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
