455 – 500 ekW C18 Tier 4F Diesel Generator Set
500 ekW
MINIMUM RATING
455 ekW
EMISSIONS/FUEL STRATEGY
U.S. EPA Tier 4 Final
| DOWNLOADS: |  Spec-Sheet-CAT-C18-Tier-4F |
OVERVIEW
455 – 500 EKW Diesel Generator Set
Providing reliable power from 455 – 500 ekW at 60 Hz, the C18 Tier 4F meets your mission critical, standby, and prime needs. Built to accept 100% block load in one step, this diesel generator set meets ISO 8528-5 transient response requirements. The C18 diesel generator set meets certification requirements for US EPA Tier 4 Final emissions levels.
FEATURES AT A GLANCE
| Up to 55% footprint reduction, taking up less space |
| Designed to match CAT engine and alternator performance |
| Proven in-field reliability across thousands of applications |
| Rugged construction to withstand harsh environments |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 500 ekW |
| Minimum Rating | 455 ekW |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 480 Volts |
| Duty Cycles | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model: | Cat® C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore: | 1455.7 in |
| Stroke: | 7.2 in |
| Displacement: | 1106.4 in³ |
| Compression Ratio: | 14.5:1 |
| Aspiration: | Air to Air Aftercooled |
| Emissions/Fuel Strategy: | U.S. EPA Tier 4 Final |
| Governor Type: | ADEM™A4 |
DIMENSIONS
| Length | 138 in |
| Width | 67 in |
| Height | 88 in |

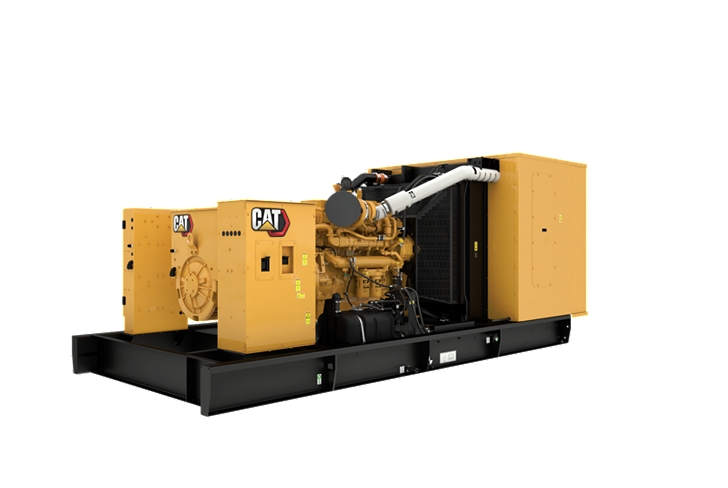

CAT C18 Tier 4F Diesel Generator
To get more information on the CAT C18 Tier 4F Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
