680 ekW – 800 ekW Diesel Generator Set
MAXIMUM RATING
800 ekW
MINIMUM RATING
635 ekW
FUEL
Low Fuel, Tier 2 Nonroad Equivalent
| DOWNLOADS: |  Spec-Sheet-CAT-C27 |
OVERVIEW
The Caterpillar C27 diesel generator set is ready for mission-critical, standby, and prime applications on any worksite. The C27 generator set produces a reliable stream of power from 680 – 800 ekW at 60 Hz.
Caterpillar designed this generator set to meet the ISO 8528-5 transient response requirements in addition to taking block load in one step and meeting NFPA 110 loading requirements.
Moreover, this generator set is certified for U.S. EPA Emergency Stationary Use Only (Tier 2) emission standards as well as a low fuel consumption system.
FEATURES AT A GLANCE
| Robust design materials that resist corrosion in extreme environments |
| Efficient access to panels for installation and maintenance |
| Designed to match performance and output characteristics of Cat diesel engines |
| Scalable system designed to meet a broad spectrum of installation requirements |
| Reliable performance proven in thousands of applications across the globe |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 800 ekW |
| Minimum Rating | 635 ekW |
| Generator Set Control | EMCP4.2B |
| Generator | SR5 |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 208 to 600 Volts |
| Duty Cycles | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model: | C27 ATAAC, V-12, 4-Stroke, Water-Cooled Diesel |
| Bore: | 5.4 in |
| Stroke: | 6 in |
| Displacement: | 1649.47 in³ |
| Aspiration: | TA |
| Manifold Type: | Dry, Air-cooled |
| Engine Control and Protection: | ADEM™ A4 |
| Emmissions/Fuel Strategy: | Low Fuel, Tier 2 Nonroad Equivalent |
DIMENSIONS
| Length | 184 in |
| Width | 67.8 in |
| Height | 85.1 in |

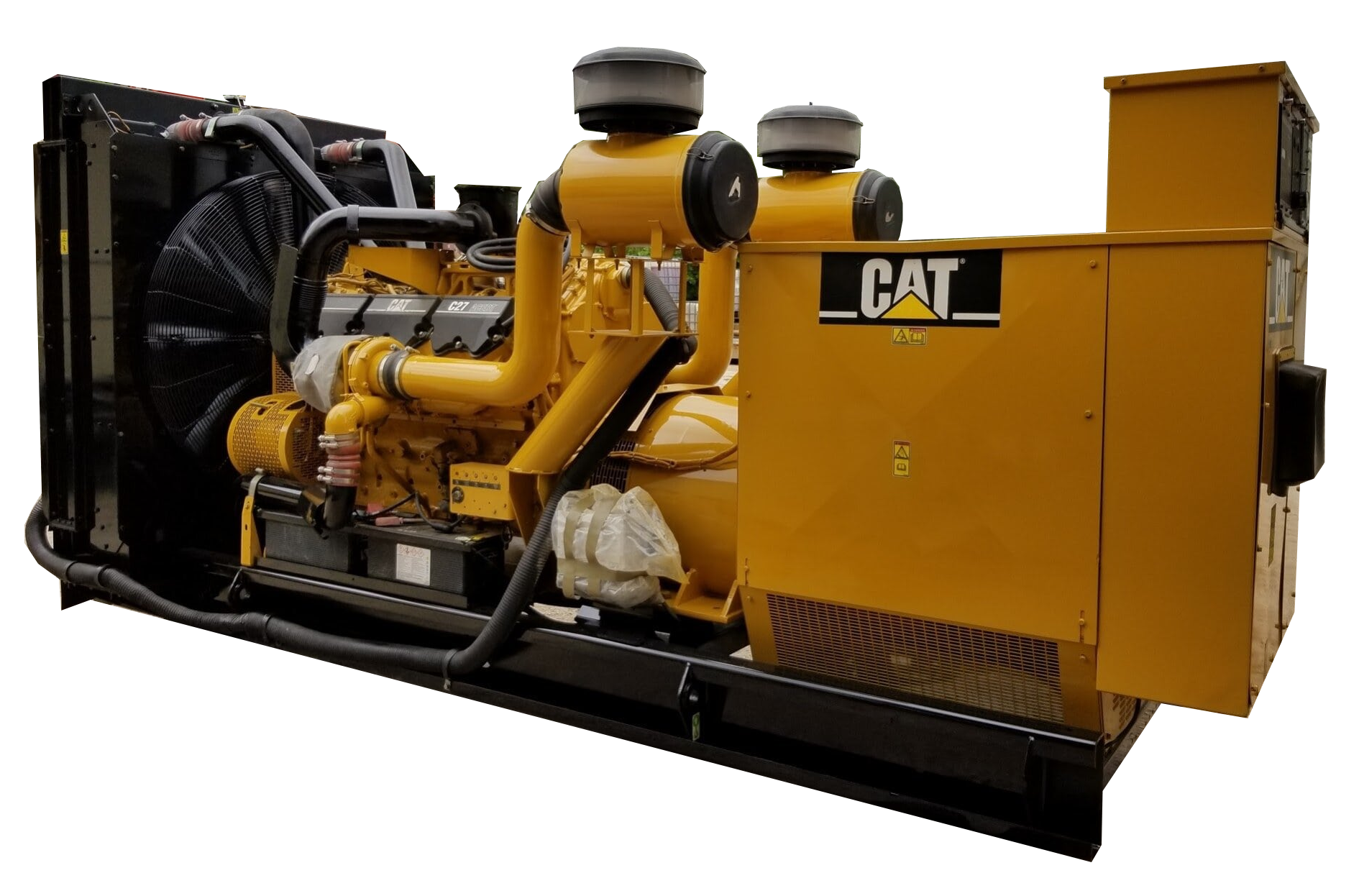

CAT C27 Diesel Generator
To get more information on the CAT C27 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
