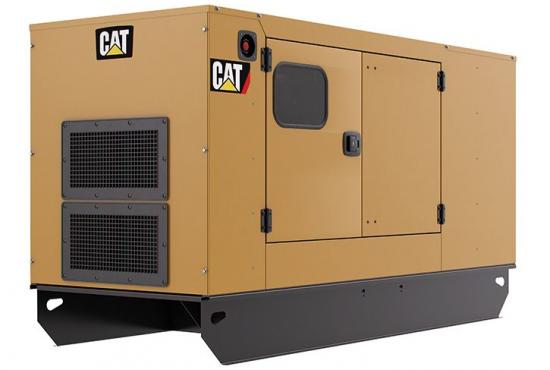

24 – 65 KVA C3.3 Diesel Generator Set
MAXIMUM RATING
60 ekW
MINIMUM RATING
27 ekW
EMISSIONS/FUEL STRATEGY
EU Stage II & R96/EUIIIa
60 ekW
MINIMUM RATING
27 ekW
EMISSIONS/FUEL STRATEGY
EU Stage II & R96/EUIIIa
Spec-Sheet-CAT-C.3.3-DE33E0OVERVIEW
Producing reliable power from 27.0 to 60.0 ekW at 60 Hz, our C3.3 diesel generator sets designed to ISO 8528-5 transient response requirements. All C3.3 generator sets are R96/EUIIIa equivalent emissions compliant.
FEATURES AT A GLANCE
| Reliability through a durable design built to withstand rough handling in harsh environments |
| Superior motor starting capability that minimizes the need for oversizing your alternator |
| Proven capability in-field in thousands of applications across the globe |
| Four-stroke-cycle engine combines consistency in performance with fuel economy |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 27 ekW |
| Maximum Rating | 60 ekW |
| Emissions/Fuel Strategy | EU Stage II & R96/EUIIIa |
| Voltage | 110 to 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model | Cat® C3.3 |
| Bore | 4.13 in |
| Stroke | 5 in |
| Displacement | 3.3 in³ |
| Compression Ratio | 17.25:1, 19.25:1 |
| Aspiration | Turbocharged |
| Fuel System | Direct Injection |
| Governor Type | Mechanical |
DIMENSIONS
| Length – Maximum | 55.11 in |
| Width – Maximum | 3.54 in |
| Height – Maximum | 41.49 in |
