125 ekW – 200 ekW DIESEL GENERATOR SET
MAXIMUM RATING
200 ekW
MINIMUM RATING
125 ekW
FUEL
Non Regulated, EU Stage IIIA
DOWNLOADS: | Spec-Sheet-CAT-C7.1 |
OVERVIEW
With reliable power from 125 – 200 ekW, the CAT C7.1 diesel generator set was designed to all requirements of ISO 8528-5 transient response.
These generator sets are available at an array of emission levels.
FEATURES AT A GLANCE
Lockable access doors which give full access to control panel and breaker |
Rugged construction to withstand outdoor exposure and the rough handling common on many construction sites |
Excellent access for efficient maintenance |
Designed to resist corrosion in extreme conditions |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
Maximum Rating | 220 kVA |
Minimum Rating | 135 kVA |
Generator Set Control | EMCP4.1 control panel |
Generator | IP23 |
Frequency – Speed | 50 Hz (1500 rpm) |
Voltages | 110 to 480 Volts |
Duty Cycles | Standby, Prime |
ENGINE SPECIFICATIONS
Engine Model: | Cat® C7.1 |
Bore: | 4.1 in |
Stroke: | 5.3 in |
Displacement: | 427.8 in³ |
Aspiration: | Turbocharged, Air to Air Aftercooled |
Manifold Type: | Watercooled |
Engine Control and Protection: | ADEM A4 |
Emmissions/Fuel Strategy: | Non Regulated, EU Stage IIIA |
DIMENSIONS
Length | 98.4 in |
Width | 52 in |
Height | 64 in |
Weight | 3307 lb |

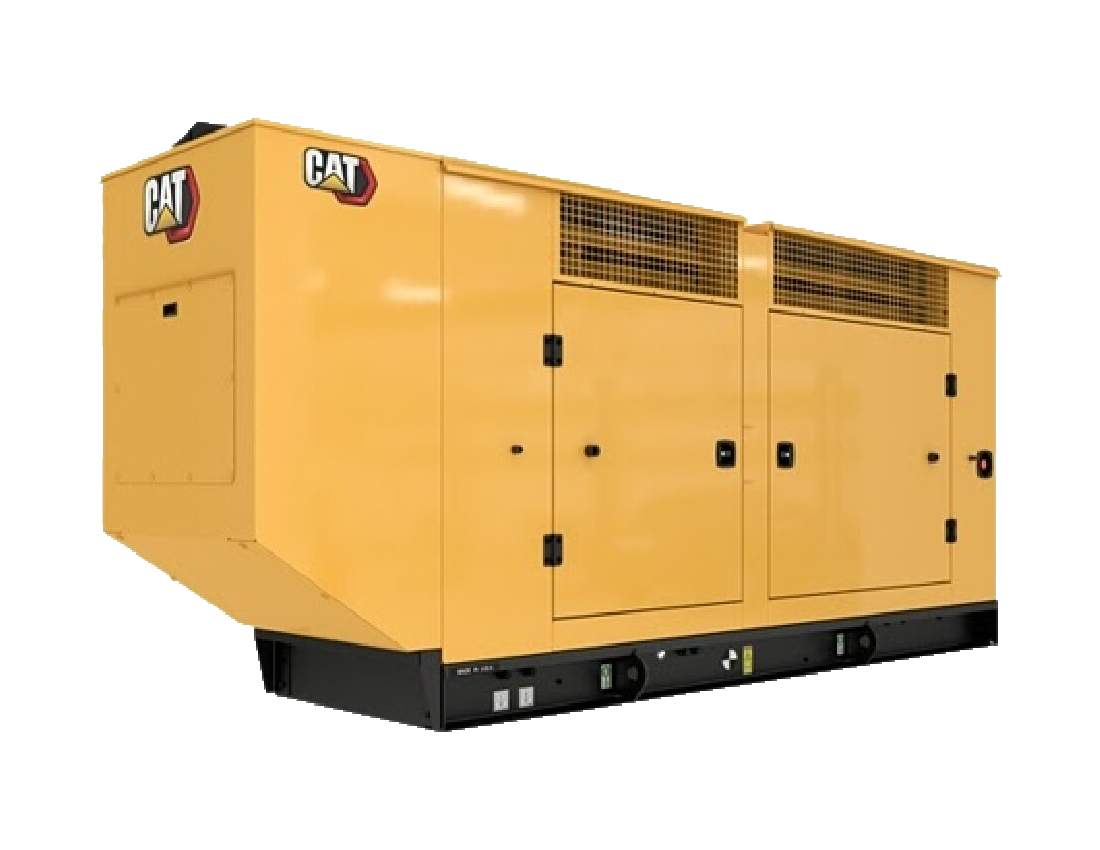

CAT C7.1 Diesel Generator
To get more information on the CAT C7.1 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
