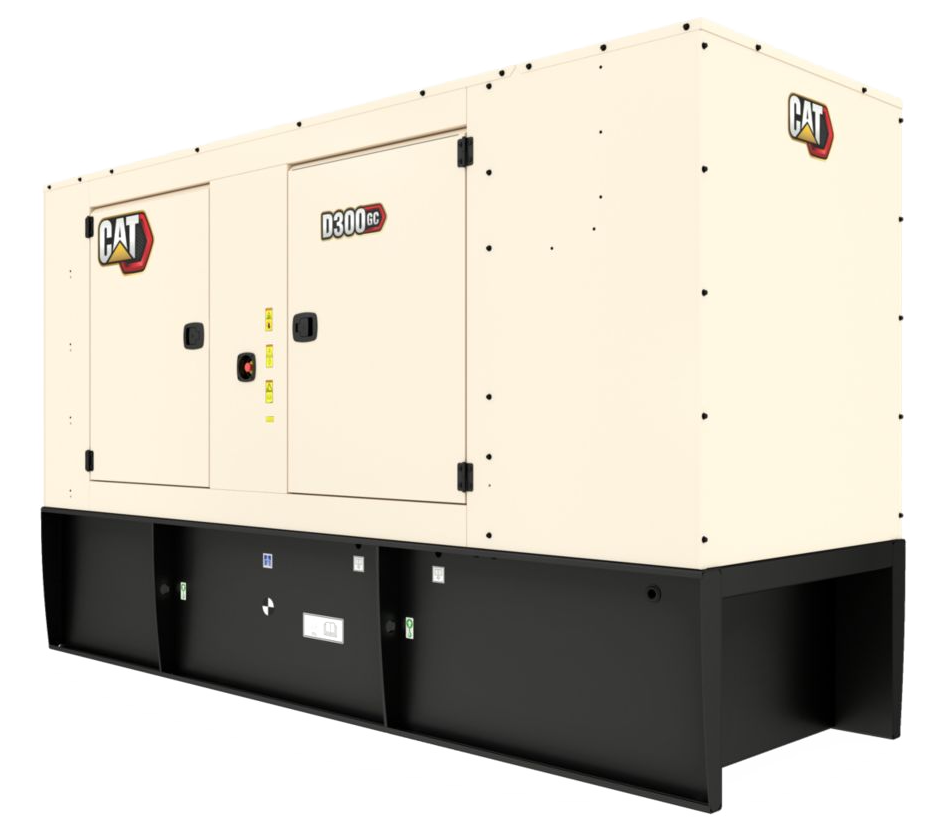

CAT D300GC Diesel Generator

300 eKW D300 GC Diesel Generator Set

View All Diesel Generators

MAXIMUM RATING
300 ekW

MINIMUM RATING
300 ekW

EMISSIONS/FUEL STRATEGY
EPA Stationary Emergency

View Specs

DOWNLOADS:

Spec-Sheet-CAT-D300GC

OVERVIEW

The D300 GC diesel generator set provides a reliable source of the power of 300 eKW at 60 Hz.

This diesel generator set was designed to meet the ISO 8528-5 transient response requirements.

Moreover, they meet the tier 3 EPA Stationary Emergency emissions standards.

FEATURES AT A GLANCE

Built to accept 100% block load in one step while meeting NFPA 110 loading requirements

Rugged and reliable design proven for in-field applications worldwide

Operable in standard ambient temperatures up to 104°F / 40°C

Components provide seamless design integration to promote optimal performance

Your one-stop-shop for power equipment solutions.

When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.

GENERATOR SET SPECIFICATIONS

Minimum Rating	300 ekW
Maximum Rating	300 ekW
Emissions/Fuel Strategy	EPA Stationary Emergency
Voltage	208 to 600 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby

ENGINE SPECIFICATIONS

Engine Model	Cat® C9 In-line 6, 4-cycle diesel
Bore	4.4 in
Stroke	5.9 in
Displacement	538 in³
Compression Ratio	16.3:1
Aspiration	Turbocharged Air-to-Air Aftercooled
Fuel System	HEUI
Governor Type	Adem™A4

DIMENSIONS

Length – Maximum	155.5 in
Width – Minimum	56.3 in
Width – Maximum	56.7 in
Height – Minimum	67.2 in
Height – Maximum	86.7 in
Dry Weight – Genset (minimum)	5518.2 lb
Dry Weight – Genset (maximum)	6929.1 lb
