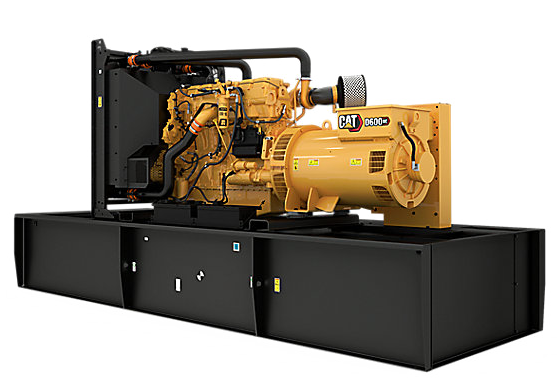

CAT D600GC Diesel Generator

600 eKW D600 GC Diesel Generator Set

View All Diesel Generators

MAXIMUM RATING
600 ekW

MINIMUM RATING
600 ekW

EMISSIONS/FUEL STRATEGY
EPA Stationary Emergency

View Specs

DOWNLOADS:

Spec-Sheet-CAT-D600GC

OVERVIEW

Offering a reliable source of power of 600 ekW at 60 Hz, the D600 GC diesel generator set meets your needs for standby applications.

Built to withstand harsh environments, this set meets the ISO 8528-5 steady-state and transient response requirements.

Built to accept 100% block load in one step, this diesel generator set meets the EPA Stationary Emergency (Tier 2) certified emissions requirements.

FEATURES AT A GLANCE

Rugged, durable design makes this model reliable in-field

Four-stroke-cycle engine combines consistency in performance with fuel economy

Accepts 100 percent block load in a single step while meeting NFPA 110 loading requirements

Built to match the performance and output of Cat diesel engines

Your one-stop-shop for power equipment solutions.

When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.

GENERATOR SET SPECIFICATIONS

Minimum Rating	600 ekW
Maximum Rating	600 ekW
Emissions/Fuel Strategy	EPA Stationary Emergency
Voltage	480 to 600 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby

ENGINE SPECIFICATIONS

Engine Model	Cat® C18 In-line 6, 4-cycle Diesel
Bore	5.7 in
Stroke	7.2 in
Displacement	1106 in³
Compression Ratio	14.5:1
Aspiration	Turbocharged Air-to-Air Aftercooled
Fuel System	MEUI
Governor Type	ADEM™A4

DIMENSIONS

Length – Maximum	196.1 in
Width – Maximum	73.4 in
Height – Minimum	79.1 in
Height – Maximum	100.9 in
Dry Weight – Genset (minimum)	8959.6 lb
Dry Weight – Genset (maximum)	11647 lb
