275 KW Natural Gas Generator Set
MAXIMUM RATING
275 KW
MINIMUM RATING
275 KW
EMISSIONS / FUEL STRATEGY
U.S. EPA Certified for Stationary Emergency Application
275 KW
MINIMUM RATING
275 KW
EMISSIONS / FUEL STRATEGY
U.S. EPA Certified for Stationary Emergency Application
| DOWNLOADS: |  Spec-Sheet-CAT-DG275-GC |
OVERVIEW
Producing reliable power of 275 kW at 60 Hz, the Cat DG275 GC natural gas generator set is the power solution you need. This spark-ignited generator is excellent for stationary power needs. EPA certified for emergency stationary use, the model complies with local emission standards.
FEATURES AT A GLANCE
| Permanent magnet excitation |
| Up to 908 SKVA at a 30% voltage dip |
| Voltage adjustment through the controller |
| User-friendly ECMP controller |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Frequency | 60 Hz |
| Natural Gas/LPG Rating | 275 ekW |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Speed | 1800 rpm |
ENGINE SPECIFICATIONS
| Fuel System | Carbureter, Down Draft |
| Compression Ratio | 9:5:1 |
| Displacement | 864.7 in³ |
| Bore | 5.31 in |
| Stroke | 6.5 in |
DIMENSIONS
| Length | 136 in |
| Width | 57.6 in |
| Height | 66.1 in |
| Weight | 6274 lb |

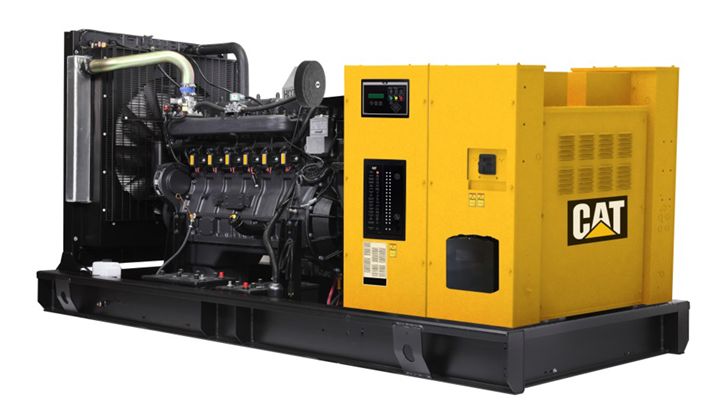

CAT DG275 GC Natural Gas Generator
To get more information on the CAT DG275 GC Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
