400 KW Natural Gas Generator Set
MAXIMUM RATING
400 KW
MINIMUM RATING
400 KW
EMISSIONS / FUEL STRATEGY
U.S. EPA Certified for Stationary Emergency Application
400 KW
MINIMUM RATING
400 KW
EMISSIONS / FUEL STRATEGY
U.S. EPA Certified for Stationary Emergency Application
| DOWNLOADS: |  Spec-Sheet-CAT-DG400-GC |
OVERVIEW
With the Cat DG400 GC natural gas generator set, you have a reliable source power of power with 400 kW at 60 Hz. When you have power problems, this spark-ignited generator meets your needs. Moreover, this natural gas generator set is EPA certified for stationary emergency use. As such, this model meets emission standards necessary for local permits.
FEATURES AT A GLANCE
| Up to 1414 SKVA at 30% voltage dip |
| Alternator with Class H insulation |
| User-friendly interface through ECMP controller |
| Scalable solution for an array of challenges |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Frequency | 60 Hz |
| Natural Gas Rating | 400 ekW |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Fuel Type | Natural Gas |
| Speed | 1800 rpm |
| Voltage | 120/208, 120/240, 277/480, 340/600 VAC |
ENGINE SPECIFICATIONS
| Engine Model | G21.9L Spark – Ignited |
| Fuel System | Carbureter, Down Draft |
| Aspiration | Turbocharged – Aftercooler |
| Governor Type | Electronic |
| Displacement | 1336.42 in³ |
| Compression Ratio | 10:0:1 |
| Bore | 5.03 in |
| Stroke | 5.6 in |
DIMENSIONS
| Length | 154.4 in |
| Width | 71 in |
| Height | 67 in |
| Weight | 8429 lb |

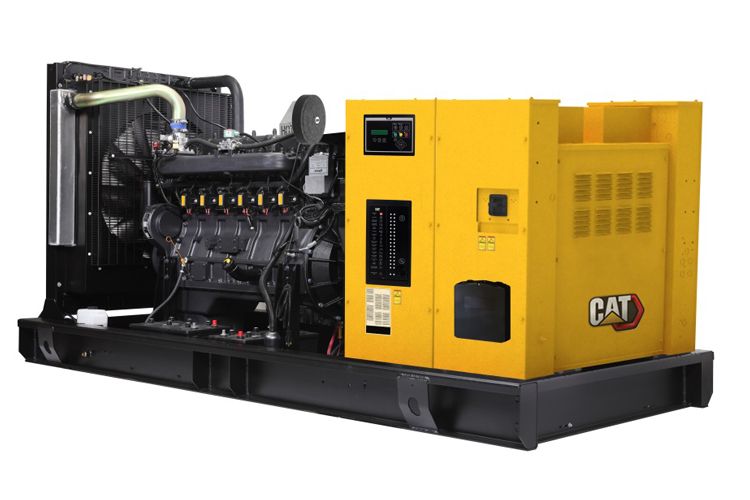

CAT DG400 GC Natural Gas Generator
To get more information on the CAT DG400 GC Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
