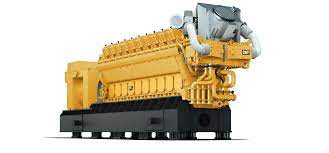

10,000 – 10,500 KW Natural Gas Generator Set
![G20CM34](https://www.reactpower.com/wp-content/uploads/2021/07/G20CM34.jpg)
10500 KW
MINIMUM RATING
10000 KW
DOWNLOADS: | ![]() |
OVERVIEW
Offering consistent power from 10,000 – 10,500 kW at 60 Hz, the Cat G20CM34 natural gas generator set has a spark-ignited engine that operates according to the lean burn combustion system. With optimal material design, it ensures a long lifespan in its components. Moreover, the use of spark plug operated pre-chamber enables efficient combustion with low emissions.
FEATURES AT A GLANCE
Proven reliability across installations |
From 0 to 100% load in less than 110 seconds |
Maximum electrical efficiency of 48.9% |
Lean-burn natural gas engine |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
Frequency | 50 – 60 Hz |
Maximum Continuous Rating | 9830 – 10300 eKW @0.8pf |
Maximum Electrical Efficiency | 48.9% |
Fuel Type | Natural Gas |
Speed | 720 – 750 rpm |
ENGINE SPECIFICATIONS
Engine Model | G20CM34 |
Aspiration | Turbocharged and Aftercooled |
Displacement | 46484.2 in³ |
Bore | 13.38 in |
Stroke | 16.53 in |
DIMENSIONS
Length | 562.2 in |
Width | 153.9 in |
Height | 212.2 in |
Weight | 361559 lb |
CAT G20CM34 Natural Gas Generator
To get more information on the CAT G20CM34 Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
