110 – 135 EKW Natural Gas Generator Set
MAXIMUM RATING
135 KW
MINIMUM RATING
115 KW
EMISSIONS / FUEL STRATEGY
NSPS or non-regulated
135 KW
MINIMUM RATING
115 KW
EMISSIONS / FUEL STRATEGY
NSPS or non-regulated
| DOWNLOADS: |  Spec-Sheet-CAT-G3306B |
OVERVIEW
Providing reliable power from 110 – 135 ekW at 60 Hz, the Cat G3306B natural gas generator set offers a solution to tough situations. This oilfield gas generator set offers an ideal solution for oilfield power challenges. The engines runs on low to no-cost well site gas with no performance sacrifice.
FEATURES AT A GLANCE
| Durable design to withstand harsh conditions |
| NSPS emission stands compliant in non-regulated areas |
| Fuel flexibility for a range of gases |
| Superior capability for gas engine transience |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 135 eKW(170 kVA) |
| Minimum Rating | 110 eKW(138 kVA) |
| Emissions / Fuel Strategy | NSPS or non-regulated |
| Frequency | 50 – 60 Hz |
| Speed | 1500 – 1800 rpm |
ENGINE SPECIFICATIONS
| Fuel System | CNG, LNG, Field gas, Natural gas |
| Manifold Type | Watercooled |
| Engine Control and Protection | ADEM A4 |
| Generator Set Control | EMCP 4.3(4.4 optional) |
| Generator | SR4B |
| Displacement | 640 in³ |
| Lube Oil System – Refill | 12 gal(US) |
| Cooling System – Engine | 5 gal(US) |
| Bore | 4.76 in |
| Stroke | 5.98 in |
DIMENSIONS
| Length | 145.8 in |
| Width | 60.2 in |
| Height | 73.1 in |
| Weight | 7716 lb |

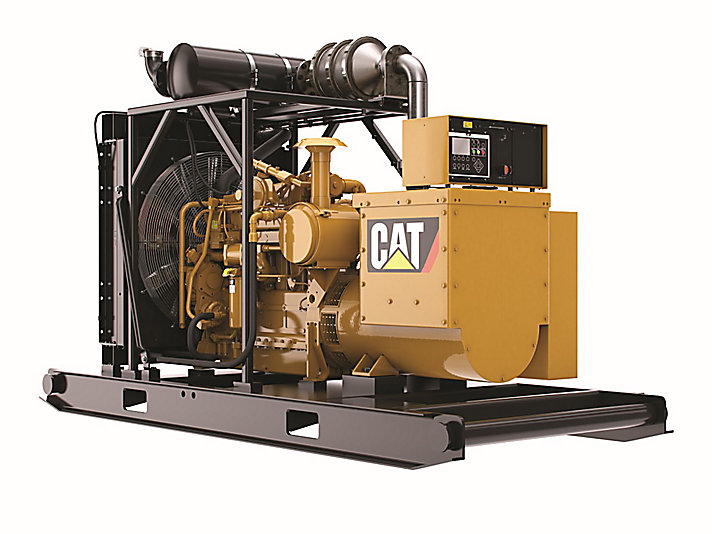

CAT G3306B Natural Gas Generator
To get more information on the CAT G3306B Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
