180 – 300kW Natural Gas Generator Set
MAXIMUM RATING
135 ekW (170 kVA)
MINIMUM RATING
110 ekW (138 kVA)
FUEL
CNG, LNG, field gas, natural gas
| DOWNLOADS: |  |
OVERVIEW
Oil and gas production out in remote oilfields is a challenging environment. Without utility power available, you need a natural gas generator you can rely on. With a CAT G3306TA natural gas generator, you have the ideal power solutions.
FEATURES AT A GLANCE
| A powerful solution for challenging remote environments |
| Reliable source of power when and where you need it most |
| An ideal solution fueled by natural gas |
| Runs on low to no-cost well site gas without hindering its performance. |
| Reduce on-site fuel costs and avoid expensive fuel deliveries. |
| A robust design built to last in the harsh conditions of the oilfield |
Moreover, the heavy-duty construction makes it ideal for loading and unloading operations.
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 135 ekW (170 kVA) |
| Minimum Rating | 110 ekW (138 kVA) |
| Generator Set Control | EMCP 4.3 (4.4 optional) |
| Generator | SR4B |
| Frequency – Speed | 50/60 Hz (1500/1800 rpm) |
| Voltages | |
| Duty Cycles |
ENGINE SPECIFICATIONS
| Engine Model: | 3306 DITA |
| Bore: | 4.76 in |
| Stroke: | 5.98 in |
| Displacement: | 640 in³ |
| Aspiration: | Turbocharged-Aftercooled |
| Manifold Type: | Watercooled |
| Engine Control and Protection: | ADEM A4 |
| Emmissions/Fuel Strategy: | NSPS or non-regulated |
CAPACITY FOR LIQUIDS
| Fuel | CNG, LNG, field gas, natural gas |
| Lube Oil System – Refill | 12 gal (US) |
| Cooling System – Engine | 5 gal (US) |
DIMENSIONS
| Length | 145.8 in |
| Width | 60.2 in |
| Height | 73.1 in |
| Weight | 7716 lb |

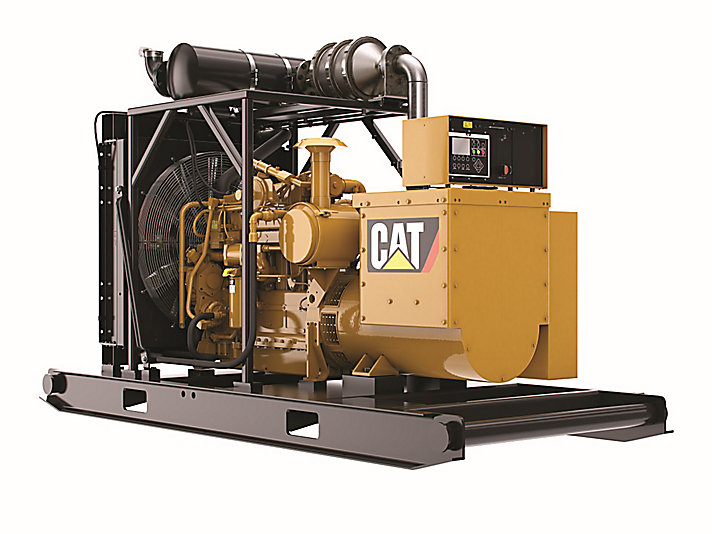

CAT G3306TA Natural Gas Generator
To get more information on the CAT G3306TA Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
