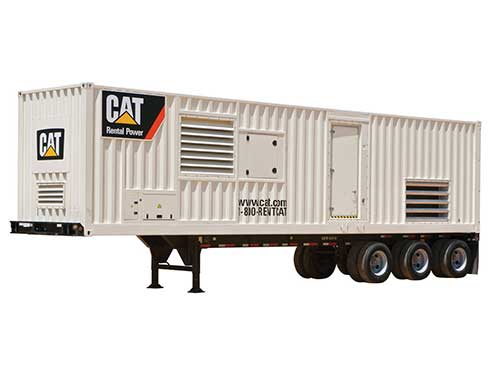

1562.5 KVA XQ1250G Natural Gas Generator Set
![Xq1250g Natural Gas Generator Rental](https://www.reactpower.com/wp-content/uploads/2021/03/xq1250g-natural-gas-generator-rental.jpg)
1250 kW
MINIMUM RATING
1250 kW
DOWNLOADS: | ![]() |
OVERVIEW
1250 KW Portable Generator Set
Providing continuous power at 1250 KW at 60 Hz, the XQ1250G portable generator set offers a mobile, natural gas-powered solution to your power needs. This generator set is ready to be connected to your fuel and power lines, designed to meet or exceed a range of specifications, including AS1359, AS2789, ABGSM TM3, BS4999, DIN6271, DIN6280, EGSA101P, JEM1359, IEC 34/1, ISO3046/1, ISO8528, NEMA MG1-22.
FEATURES AT A GLANCE
Low emission gas engine provides exceptional economy and power density |
Rugged, durable design provides reliability in the field |
110% spill containment of onboard engine fluids |
Fuel system designed for max performance on low-pressure pipeline natural gas |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
Minimum Rating | 1250 kW |
Maximum Rating | 1250 kW |
Frequency | 60 Hz |
Voltages | 277 to 480 Volts |
Duty Cycle | Standby, Emergency |
ENGINE SPECIFICATIONS
Engine Model | G3516B |
Bore | 6.7 in |
Stroke | 7.5 in |
Displacement | 4,210 in³ |
Compression Ratio | 11:1 |
Governor type | ADEM™ A3 |
Aspiration | Turbocharged, Separate Circuit AC |
Frequency – Speed | 50 – 60 (Hz) – 1800 (rpm) |
Fuel System | CAT Low Pressure w/ Air Fuel Ratio Control |
DIMENSIONS
Length – Maximum | 480 in |
Width – Maximum | 96 in |
Height – Maximum | 168 in |
CAT XQ1250G Natural Gas Generator
To get more information on the CAT XQ1250G Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
