1360 – 1500 ekW XQ1500 Diesel Generator Set

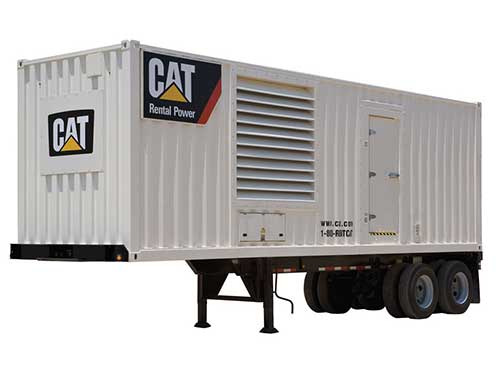

CAT XQ1500 Generator Set
MAXIMUM RATING
1500 ekW

MINIMUM RATING
1360 ekW

EMISSIONS/FUEL STRATEGY
EPA and CARB Emissions Certified for non-road mobile applications

OVERVIEW

1500 KW Portable Generator

Providing reliable power of 1500 kW at 60 Hz, the XQ1500 portable generator is a mobile solution to provide power when and where you need it. With corrosion-resistant construction, this model is well-suited to a broad spectrum of field operations. Equipped with internally mounted exhaust silencers that reduce operational noise, the XQ1500 offers an environmentally friendly design. This model is also EPA and CARB Emissions Certified for non-road mobile applications.

FEATURES AT A GLANCE

Four-stroke-cycle diesel engine provides dependability and economy
ISO container designed for ease of transportation
Sound attenuated design for noise reduction
Fuel system operates on a variety of fuels

Your one-stop-shop for power equipment solutions.

When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.

GENERATOR SET SPECIFICATIONS
Minimum Rating 1500 ekW
Maximum Rating 1360 ekW
Frequency 60 Hz
Voltage 480V
Duty Cycle Standby, Prime



ENGINE SPECIFICATIONS
Engine Model CAT® 3512B, V-12, 4-stroke-cycle diesel
Bore 6.7 in
Stroke 7.5 in
Displacement 3158 in³
Aspiration Turbocharged-Aftercooled



DIMENSIONS
Length – Maximum 480.00 in
Width – Maximum 96.00 in
Height – Maximum 162.00 in



CAT XQ1500 Diesel Generator

To get more information on the CAT XQ1500 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
