568 – 625 KVA XQ500 Diesel Generator Set
MAXIMUM RATING
500 kW
MINIMUM RATING
455 kW
EMISSIONS/FUEL STRATEGY
EPA Tier 4 Interim
500 kW
MINIMUM RATING
455 kW
EMISSIONS/FUEL STRATEGY
EPA Tier 4 Interim
| DOWNLOADS: |  Spec-Sheet-CAT-XQ500 |
OVERVIEW
455 – 500 KW Portable Generator Set
Providing reliable power from 455-500 kW at 60 Hz, the XQ500 portable generator set is a mobile power solution for operations worldwide. With a user-friendly interface and navigation, this portable generator set offers ease of use in the field. This model was also designed to meet EPA Tier 4 Interim emissions standards.
FEATURES AT A GLANCE
| Designed to meet ISO 8528-5 transient response requirements |
| Built to accept 100% block load in one step |
| Rugged, durable design offers reliability in harsh environments |
| Sound-attenuated container for low noise production |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 455 kW |
| Maximum Rating | 500 kW |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Voltages | 277 to 480 Volts, 139 to 240 Volts, 120 to 208 Volts, 600 Volts |
| Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model | C15 ATAAC |
| Bore | 5.4 in |
| Stroke | 6.75 in |
| Displacement | 927.56 in³ |
| Compression Ratio | 16:1 |
| Aspiration | TA |
| Governor type | ADEM A4 |
| Fuel System | MEUIC |
DIMENSIONS
| Length – Maximum | 240 in |
| Width – Maximum | 96 in |
| Height – Maximum | 150 in |

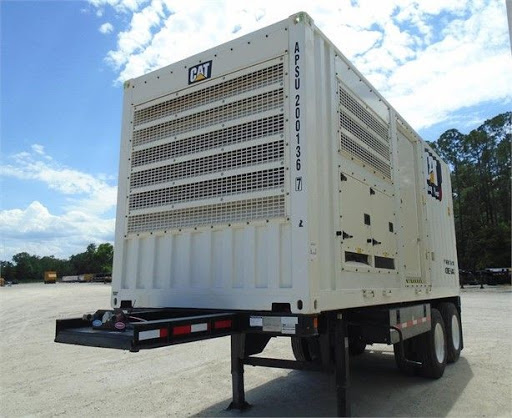

CAT XQ500 Diesel Generator
To get more information on the CAT XQ500 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
